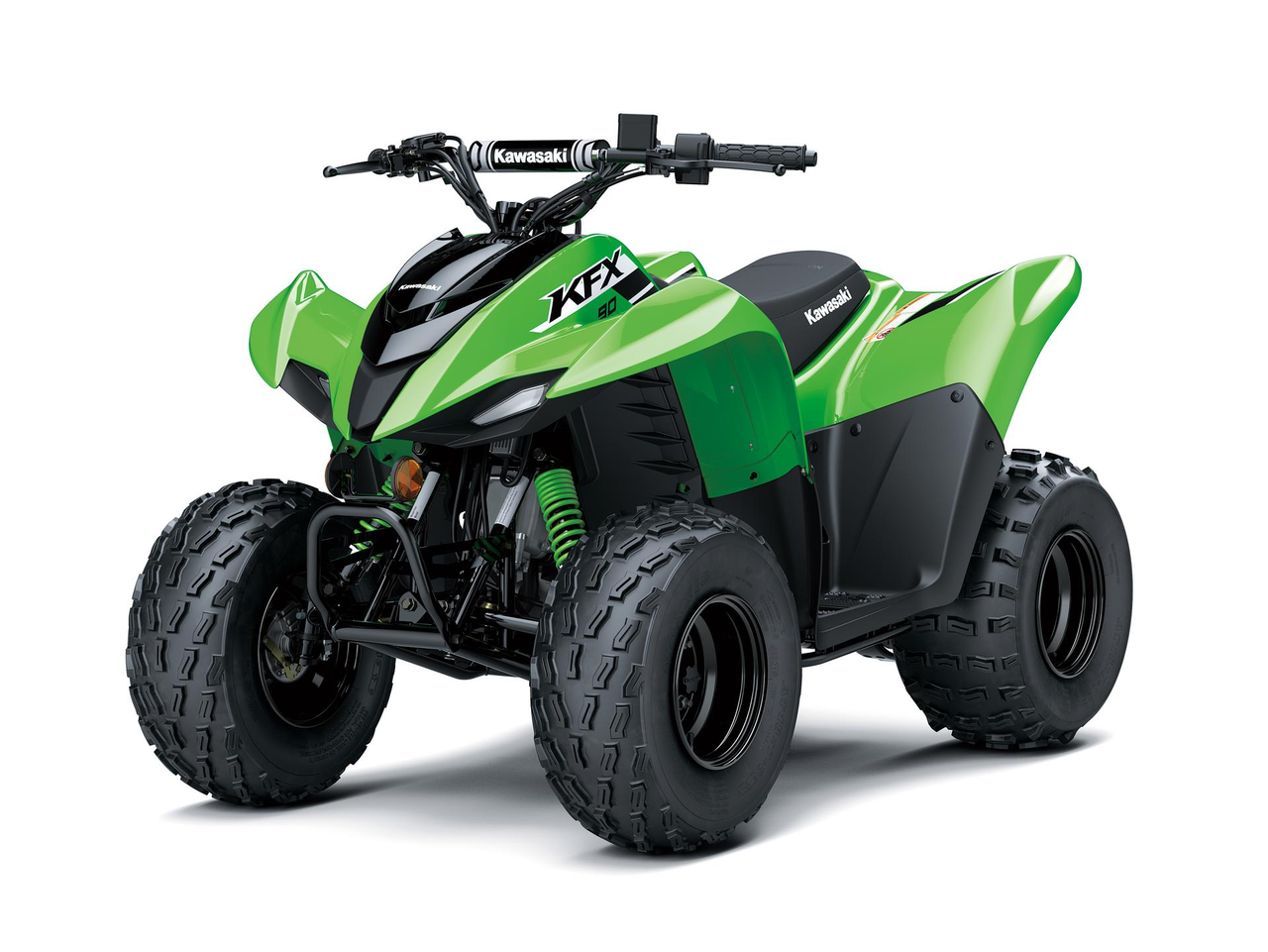

Front LED accents lights and LED taillight add to the already race-inspired bodywork. The grill shape contributes to the sharp design of the front, while tall front fenders convey a strong sporty off-road performance look.
Full coverage floorboards with slip-resistant footing contribute to increased grip and helps young riders control their ATV when riding while in a standing position. Increased mud protection keeps the engine running at a cooler temperature and keeps dirt and debris from building up near the engine.

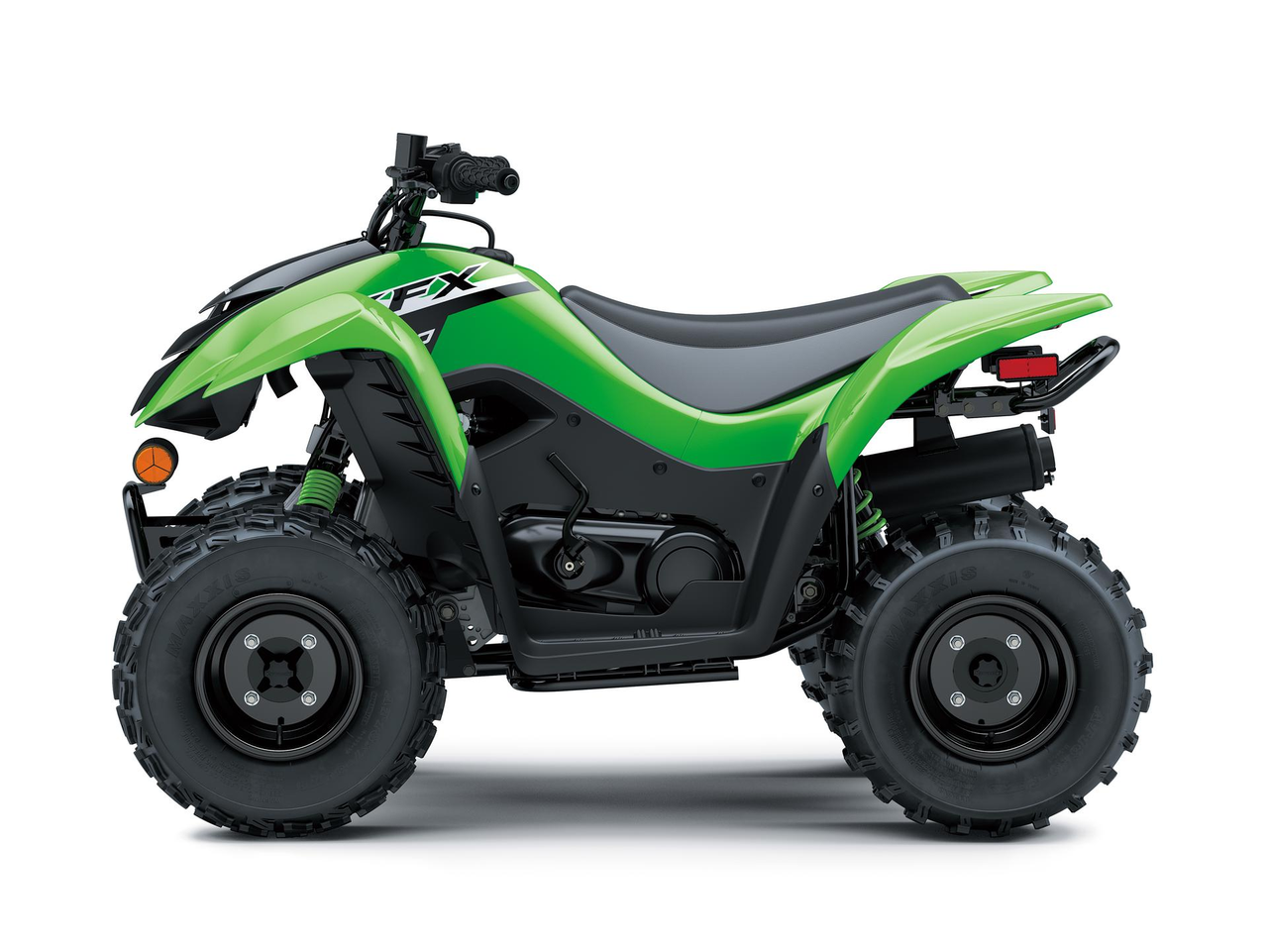

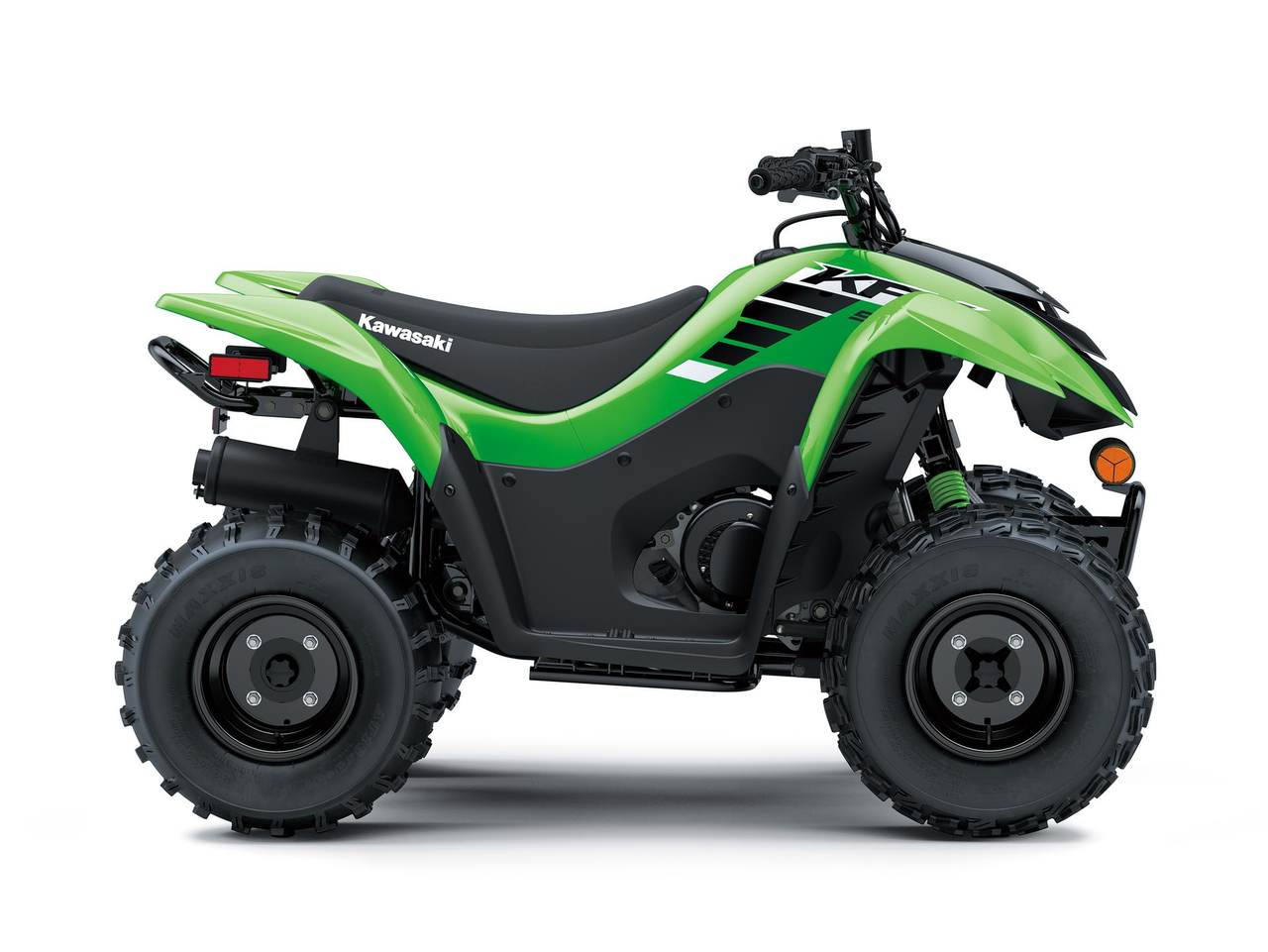

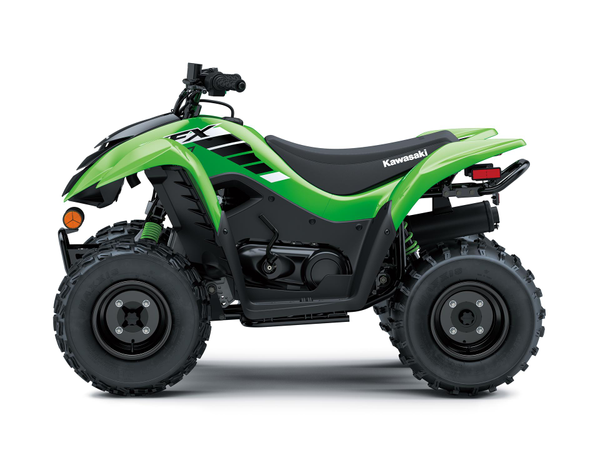

The KFX90 ATV lets riders ages 10 and older take on tougher tracks. A 90 cc four-stroke engine equipped with an electric start for simple and reliable starting produces smooth and predictable power. Parental controls include a keyed ignition to help address unsupervised use, as well as speed controls with a throttle-limiting screw to restrict throttle movement, and a collar in the automatic Continuously Variable Transmission (CVT) that can be removed to increase speed as the rider gains experience, allowing the KFX90 to grow with the rider.
Independent A-arms in the front and swingarm rear suspension soak up bumps for a smooth ride and contribute to sporty handling.
| Engine type | Air-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 10.0:1 |
| Valve system | SOHC, 2 valves |
| Bore x stroke | 47.0 x 51.8 mm |
| Displacement | 90 cm³ |
| Fuel system | Carburettor |
| Lubrication | Forced lubrication, wet sump with oil cooler |
| Starting system | Electric & kick |
| Ignition system | Battery & Coil (transistorised ignition) |
| Maximum power | 4.8 kW {6.5 PS} / 7,500 rpm |
|---|---|
| Maximum torque | 6.6 N•m {0.6 kgf•m} / 5,500 rpm |
| Transmission | CVT, centrifugal clutch |
| Primary drive | Belt drive torque converter (CVT) |
| Final drive | Chain |
| Frame type | Double-cradle, steel |
|---|---|
| Trail | 15 mm |
| Wheel travel front | 71 mm |
| Wheel travel rear | 74 mm |
| Tyre, front | AT18X7-8 |
| Tyre, rear | AT18X9-8 |
| L x W x H | 1,425 x 900 x 925 mm |
| Steering angle L/R | 30° / 30° |
| Wheel base | 965 mm |
| Ground clearance | 100 mm |
| Fuel capacity | 5.3 litres |
| Seat height | 650 mm |
| Curb mass | 122 kg |
| Front brake type | Mechanical drum |
|---|---|
| Rear brake type | Hydraulic disc |
| Front suspension type | Single A-Arm |
| Rear suspension type | Swingarm |
