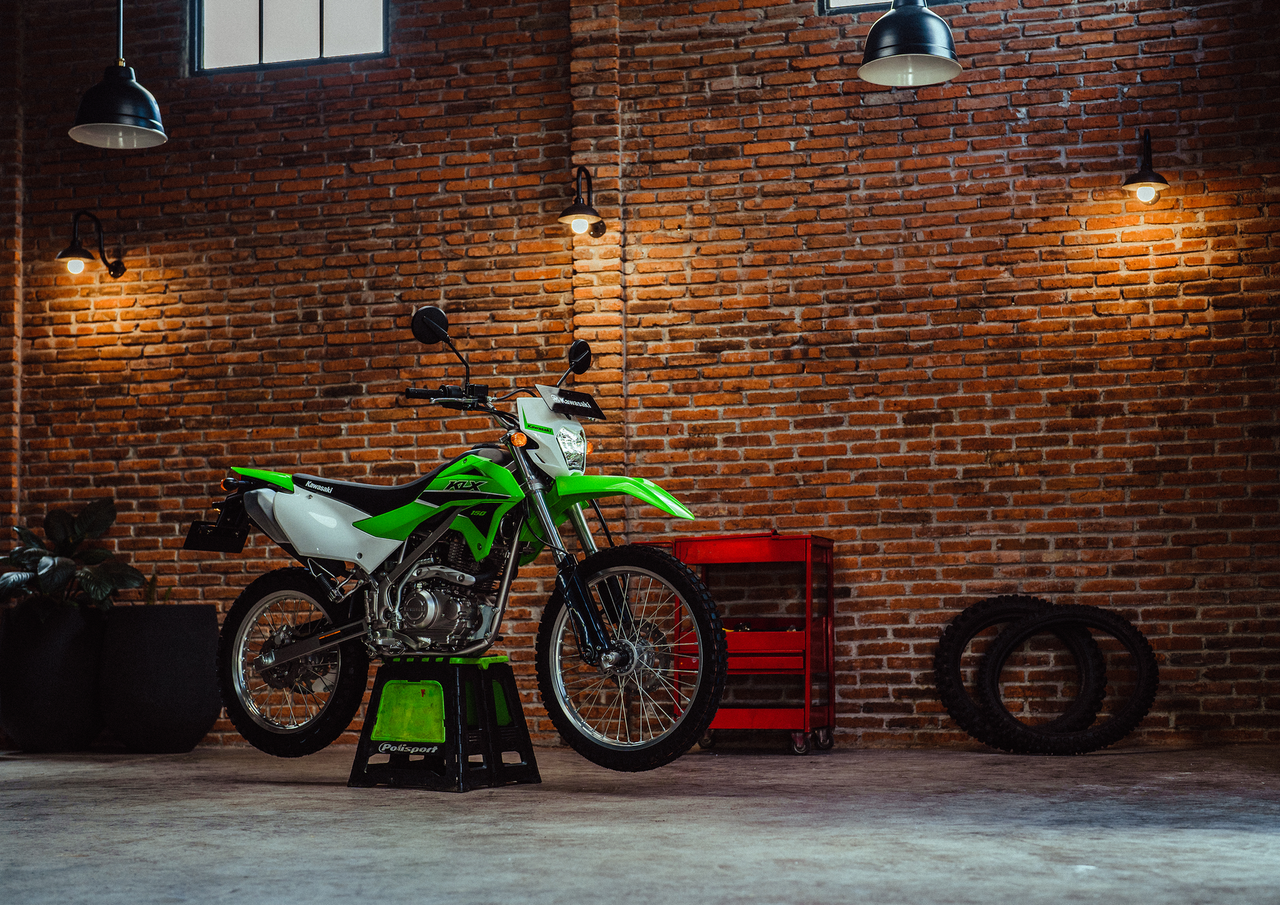

Racy MX Styling
Racy styling inspired by KX motocross machines gives the bike aggressive, sporty looks that reflect its off-road potential. Sharper and more stylish with enhanced equipment, the KLX150 looks like a full-fledged enduro bike.
Strong, Reliable Engine Tuned for Off-road Riding
The simple, air-cooled single-cylinder engine offers an easy-to-use and highly reliable power plant. Short gearing results in engine performance focused on the low-mid range, ensuring the strong low-end torque ideal for tackling tough off-road situations. And with electric start, starting is as easy as a quick push of the button.
Slim, Lightweight Chassis for All-day Bush Exploration
The high rigidity, compact size and light weight of the steel perimeter frame offer excellent handling qualities and contribute to easy manoeuvrability.
Engine
| Engine Type | Air-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 9.5:1 |
| Valve system | SOHC, 2 valves |
| Bore x stroke | 58.0 x 54.4 mm |
| Displacement | 144 cm³ |
| Fuel System | Carburettor |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric & kick |
| Ignition | DC-CDI |
Performance & Transmission
| Maximum power | 8.6 kW {12 PS} / 8,000 rpm |
|---|---|
| Maximum torque | 11.3 N•m {1.2 kgf•m} / 6,500 rpm |
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.880 |
| Gear ratios 1st | 2.917 |
| Gear ratios 2nd | 2.000 |
| Gear ratios 3rd | 1.474 |
| Gear ratios 4th | 1.182 |
| Gear ratios 5th | 1.000 |
| Final drive | Chain |
| Final reduction ratio | 3.714 |
Frame & Dimensions
| Frame type | Perimeter, steel |
|---|---|
| Trail | 110 mm |
| Wheel travel front | 185 mm |
| Wheel travel rear | 192 mm |
| Tyre, rear | 4.10-18 59P |
| L x W x H | 2,050 x 830 x 1,155 mm |
| Wheel base | 1,345 mm |
| Ground clearance | 300 mm |
| Fuel capacity | 6.9 litres |
| Seat height | 865 mm |
| Curb mass | 118 kg |
Brakes & Suspension
| Front brake diameter | Ø 240 mm |
|---|---|
| Rear brake type | Single petal disc |
| Rear brake diameter | Ø 190 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Inverted fork |
| Front suspension diameter | Ø 35 mm |
