Class-leading comfort has been a hallmark of Kawasaki’s hard-working side x sides. The MULE PRO-FX 1000 HD Edition delivers on that front, with the new, longer-travel suspension further contributing to ride comfort offered by the composed chassis and roomy interior. Creature comforts like EPS, tilt-steering, handy storage spaces and numerous cup holders are complemented by improved maintenance-related elements.

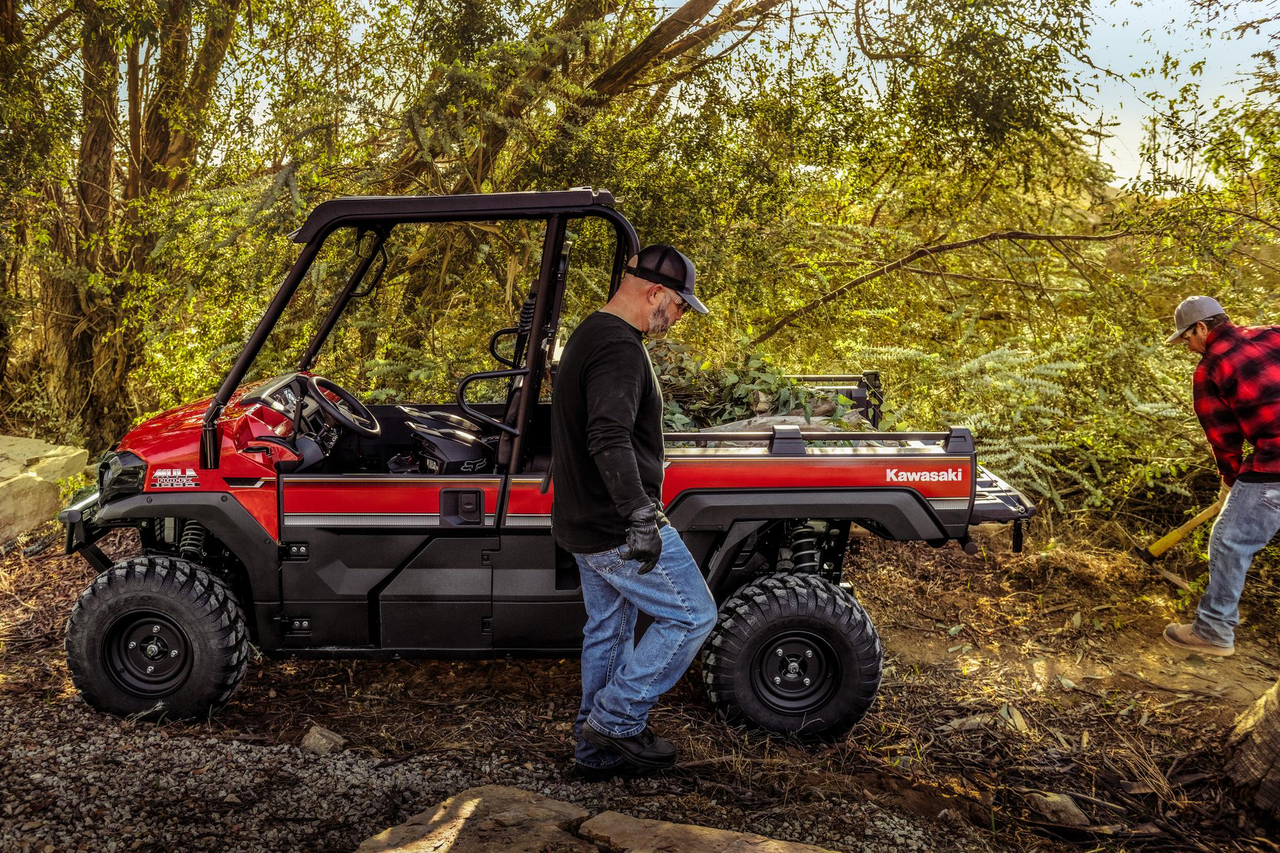

Kawasaki MULE side x sides are famous for their strength and durability, and the new MULE PRO-FX 1000 HD Edition is no exception. Like other MULE side x sides in Kawasaki’s line-up, these new flagship series models were built to last in a variety of conditions and are backed by a three-year Kawasaki STRONG limited warranty.

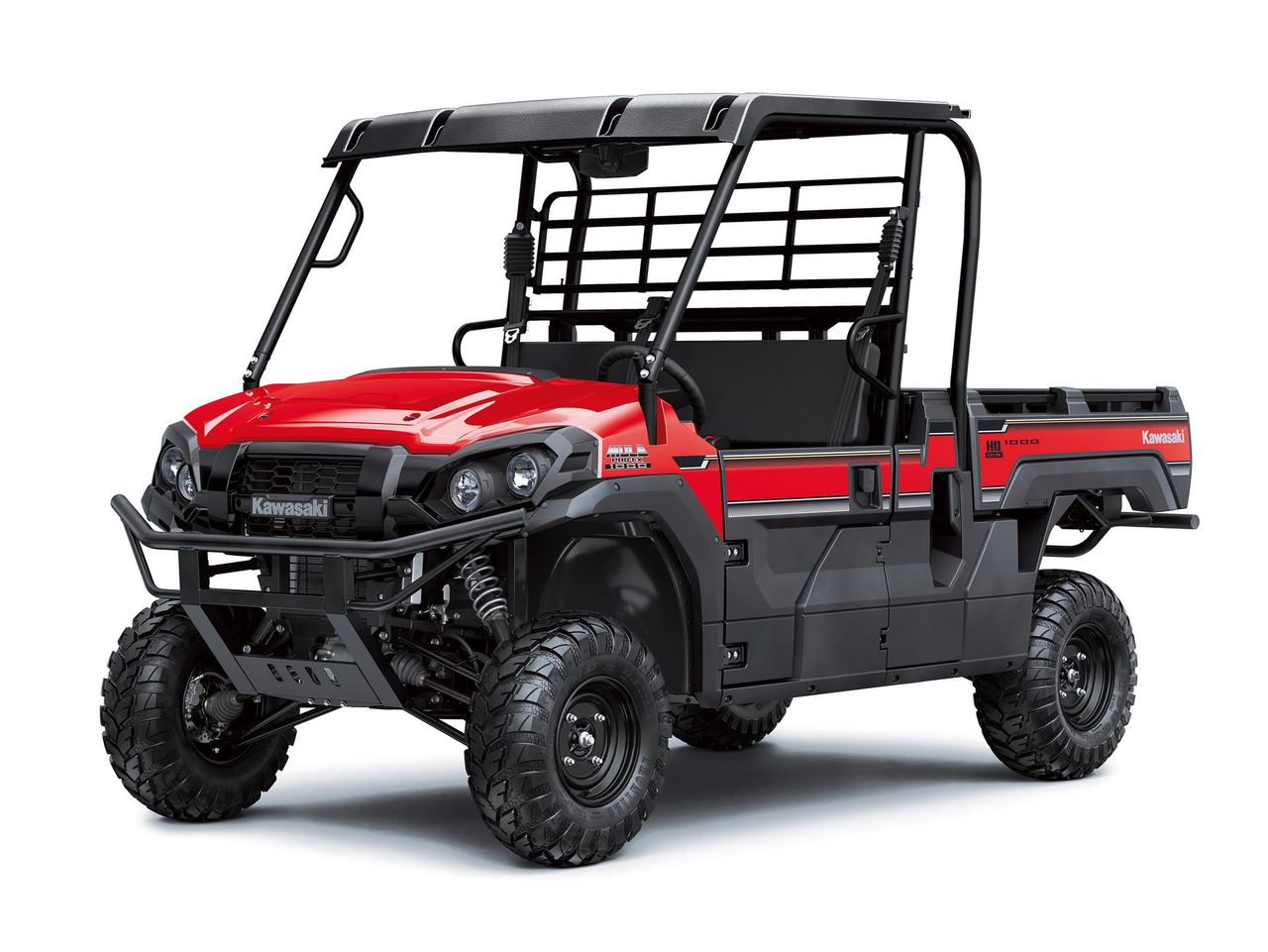

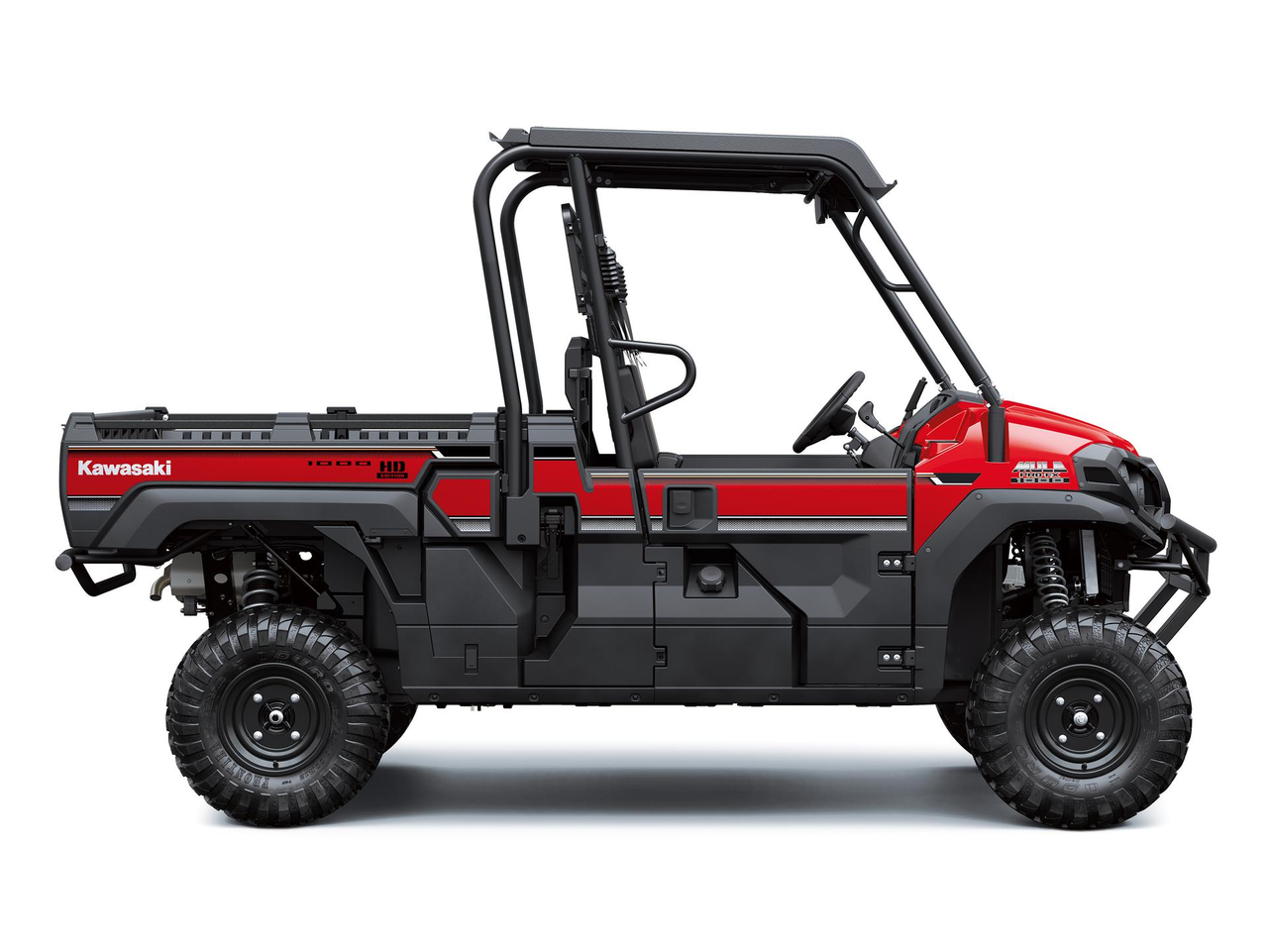

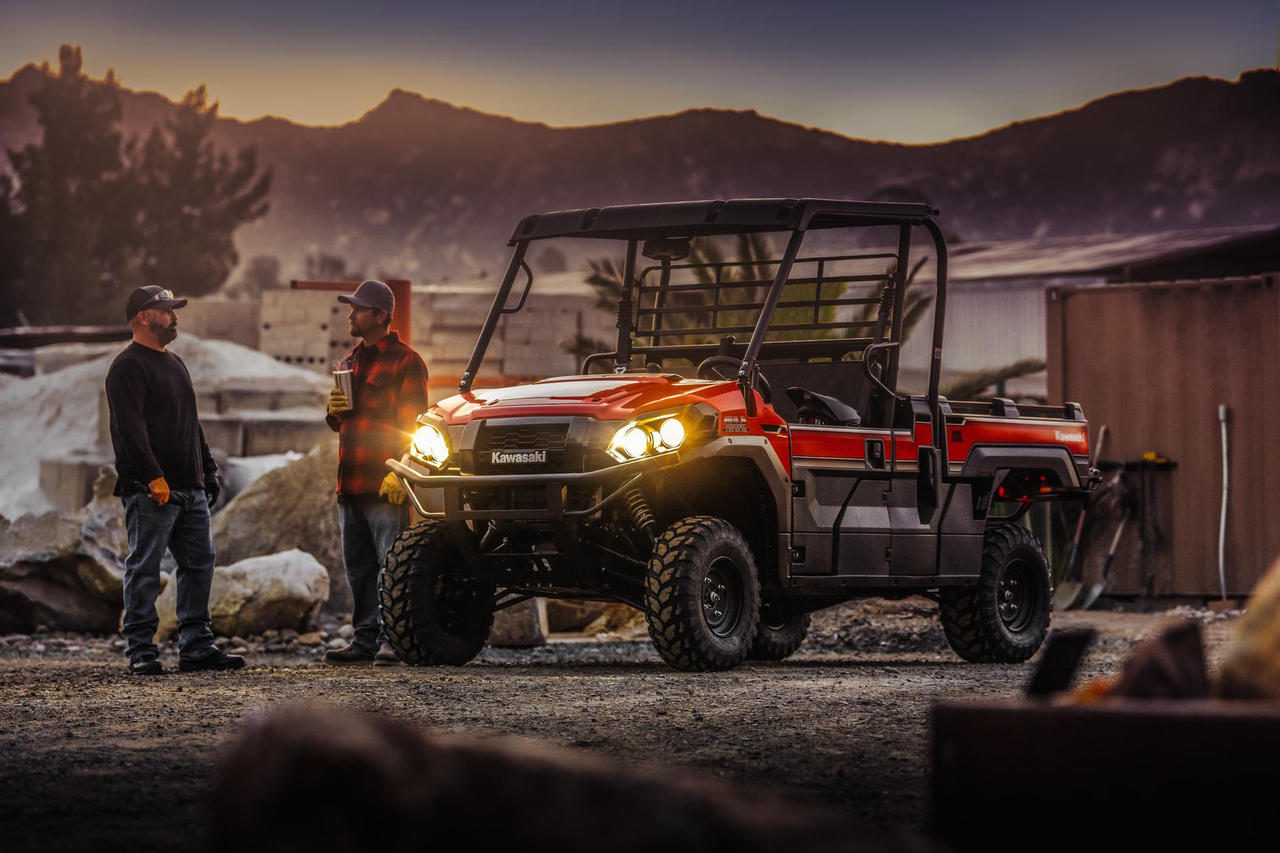

The MULE PRO-FX 1000 HD Edition features a front end based on that of the MULE PRO-FXR, including quad headlights. The serious looks reflect the new model’s ability to perform at work sites and in moderate recreation environments, while a silver Kawasaki emblem adds a high-end, premium image.
The MULE PRO-FX 1000 HD Edition improves on the acclaimed engine and chassis performance of the MULE PRO Series models with a new, larger-displacement Kawasaki-built engine and a sturdy chassis augmented with longer-travel suspension, increased ground clearance and Kawasaki’s first self-levelling rear suspension.
| Engine type | Liquid-cooled, 4-stroke, parallel twin |
|---|---|
| Valve system | DOHC, 4 valves |
| Bore x stroke | 92.0 x 75.1 mm |
| Displacement | 999 cm³ |
| Fuel system | Fuel injection: 38 mm x 1 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Digital |
| Maximum power | 52.0 kW {71 PS} / 6,500 rpm |
|---|---|
| Maximum torque | 83.0 N•m {8.5 kgf•m} / 4,500 rpm |
| Transmission | CVT, 2-speed & reverse, automatic |
| Final drive | Shaft 2WD/4WD, dual-mode differential |
| Final reduction ratio | 6.382 (31/17 x 35/10) |
| Frame type | Ladder type, tubular steel |
|---|---|
| Trail | 20 mm |
| Wheel travel front | 279 mm |
| Wheel travel rear | 256 mm |
| Tyre, front | 26 x 9.00-12 4PR |
| Tyre, rear | 26 x 11.00-12 4PR |
| L x W x H | 3,470 x 1,625 x 2,060 mm |
| Wheel base | 2,345 mm |
| Ground clearance | 300 mm |
| Fuel capacity | 30.0 litres |
| Seat height | 920 mm |
| Curb mass | 858 kg |
| Parking brake | Dual discs (mechanical) |
|---|---|
| Front brake type | Dual discs |
| Front brake diameter | Ø 212 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Dual discs |
| Rear brake diameter | Ø 212 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Double wishbone |
