With the class-exclusive three- to six-passenger Trans Cab system, all it takes is one person to take one trip around the vehicle to convert the MULE PRO-FXT side x side from three passengers to six. All in about one minute.

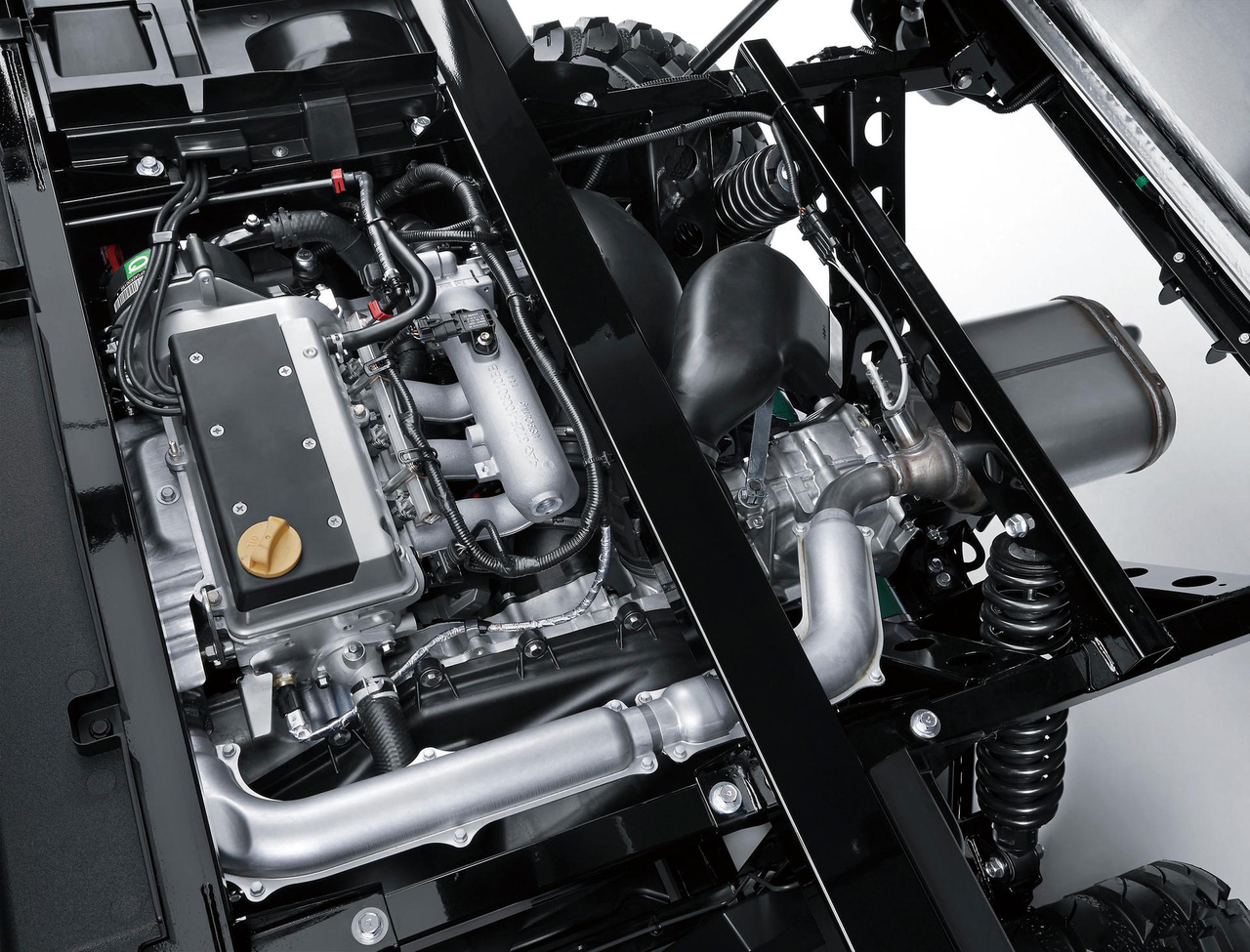

812 cc, DOHC, three-cylinder petrol engine with massive torque packs impressive pulling power for hauling and towing heavy loads across challenging terrain.

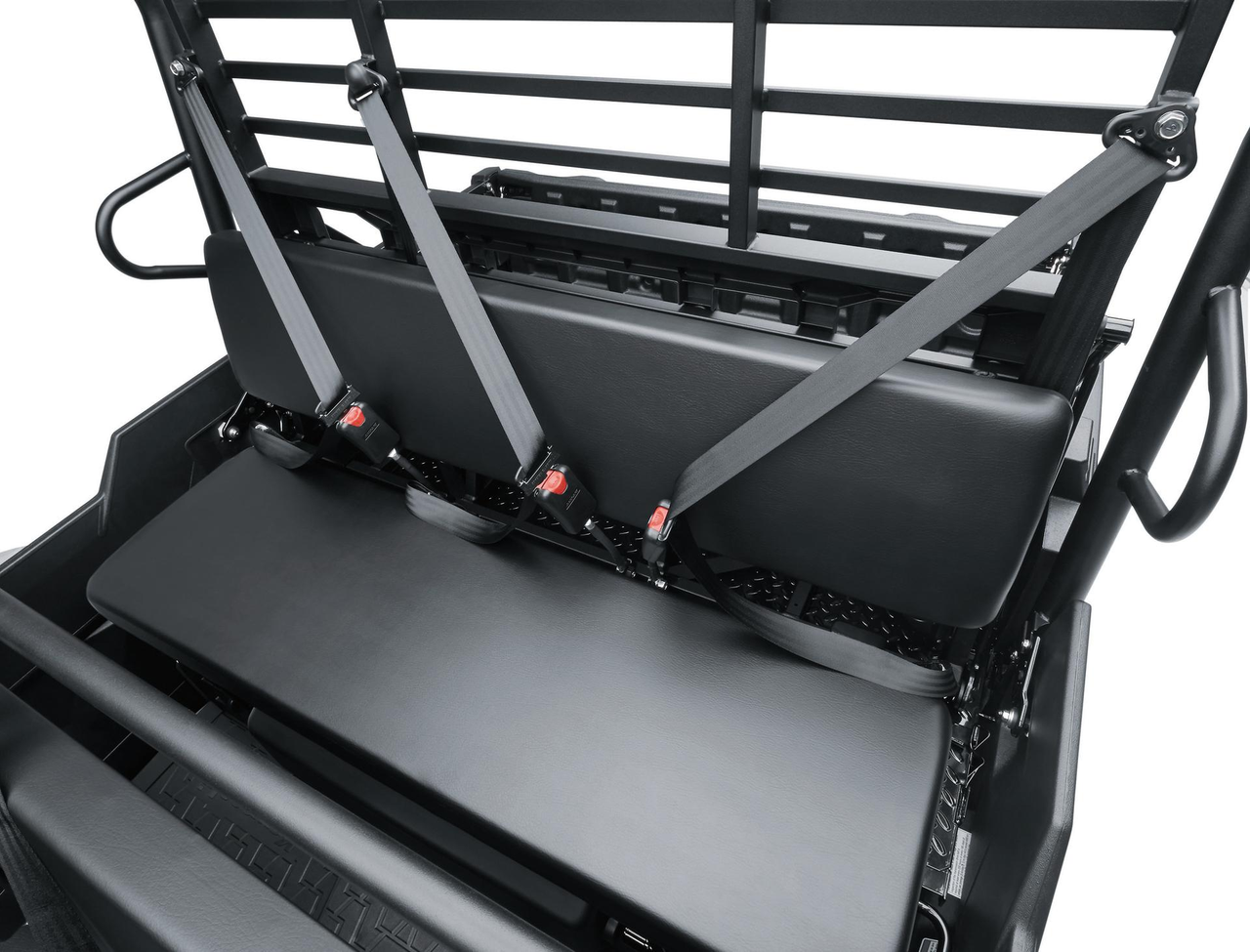

Drive comfortably in a roomy cabin that offers generous leg, shoulder, and head clearance, along with refined ergonomics.
MULE PRO-FXT side x sides come with convenient features to assist you on the job.
| Engine type | Liquid-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 9.5:1 |
| Valve system | DOHC, 4 valves |
| Bore x stroke | 72.0 x 66.5 mm |
| Displacement | 812 cm³ |
| Fuel system | Fuel injection: 34 mm x 1 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Battery & Coil (transistorised ignition) |
| Maximum power | 35.0 kW {48 PS} / 5,500 rpm |
|---|---|
| Maximum torque | 65.0 N•m {6.6 kgf•m} / 3,500 rpm |
| Transmission | CVT, 2-speed & reverse, automatic |
| Final drive | Shaft 2WD/4WD, dual-mode differential |
| Final reduction ratio | 6.382 (31/17 x 35/10) |
| Frame type | Ladder type, tubular steel |
|---|---|
| Wheel travel front | 222 mm |
| Wheel travel rear | 217 mm |
| Tyre, front | 26 x 9.00-12 4PR |
| Tyre, rear | 26 x 11.00-12 4PR |
| L x W x H | 3,385 x 1,625 x 1,970 mm |
| Wheel base | 2,345 mm |
| Ground clearance | 260 mm |
| Fuel capacity | 30.0 litres |
| Seat height | 880 mm |
| Curb mass | 867 kg |
| Parking brake | Dual discs (mechanical) |
|---|---|
| Front brake type | Dual discs |
| Front brake diameter | Ø 212 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Dual discs |
| Rear brake diameter | Ø 212 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Double wishbone |
| Rear suspension type | Double wishbone |
