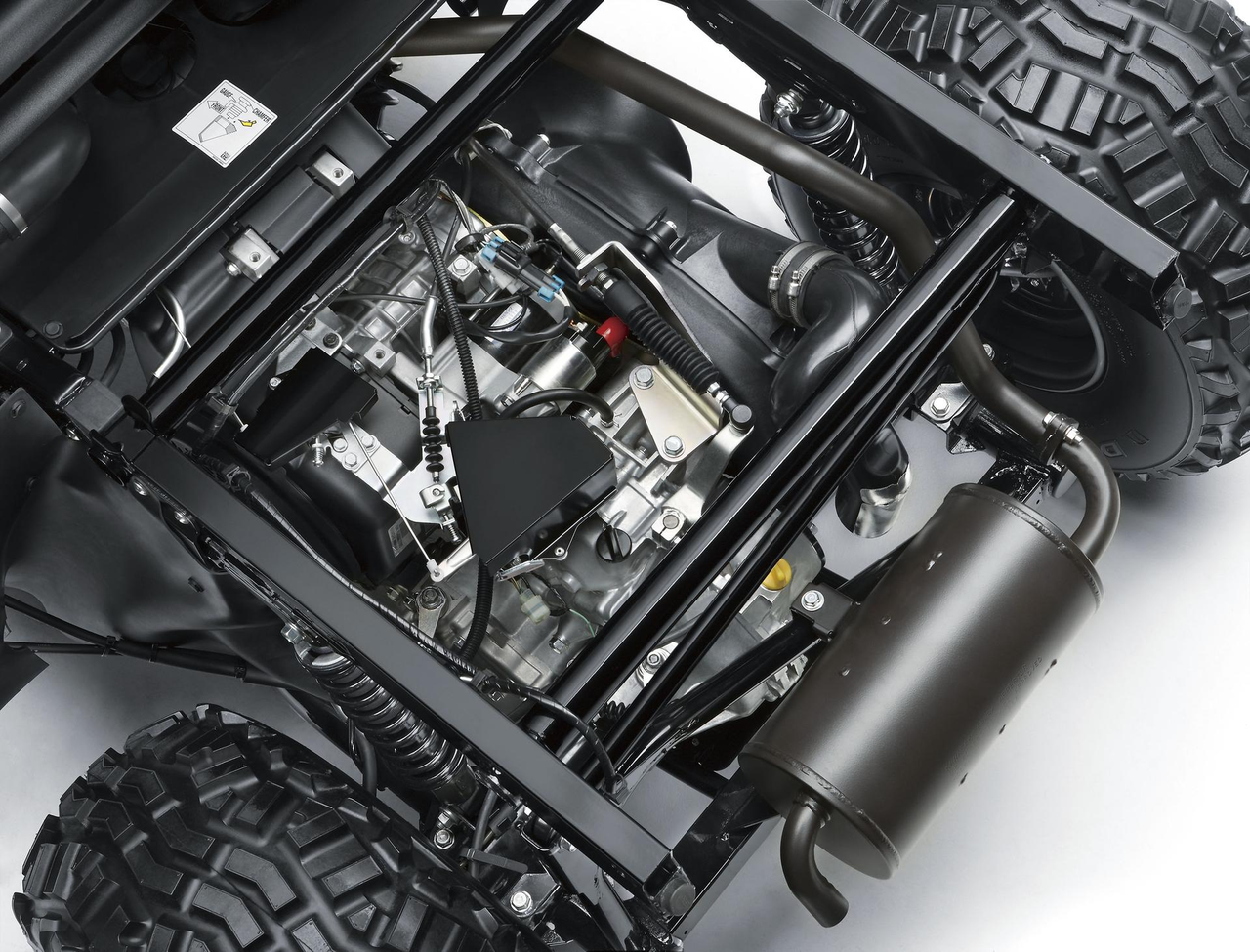

401 cc air-cooled, four-stroke single packs plenty of power while the Continuously Variable Transmission (CVT) contributes to smooth power delivery.

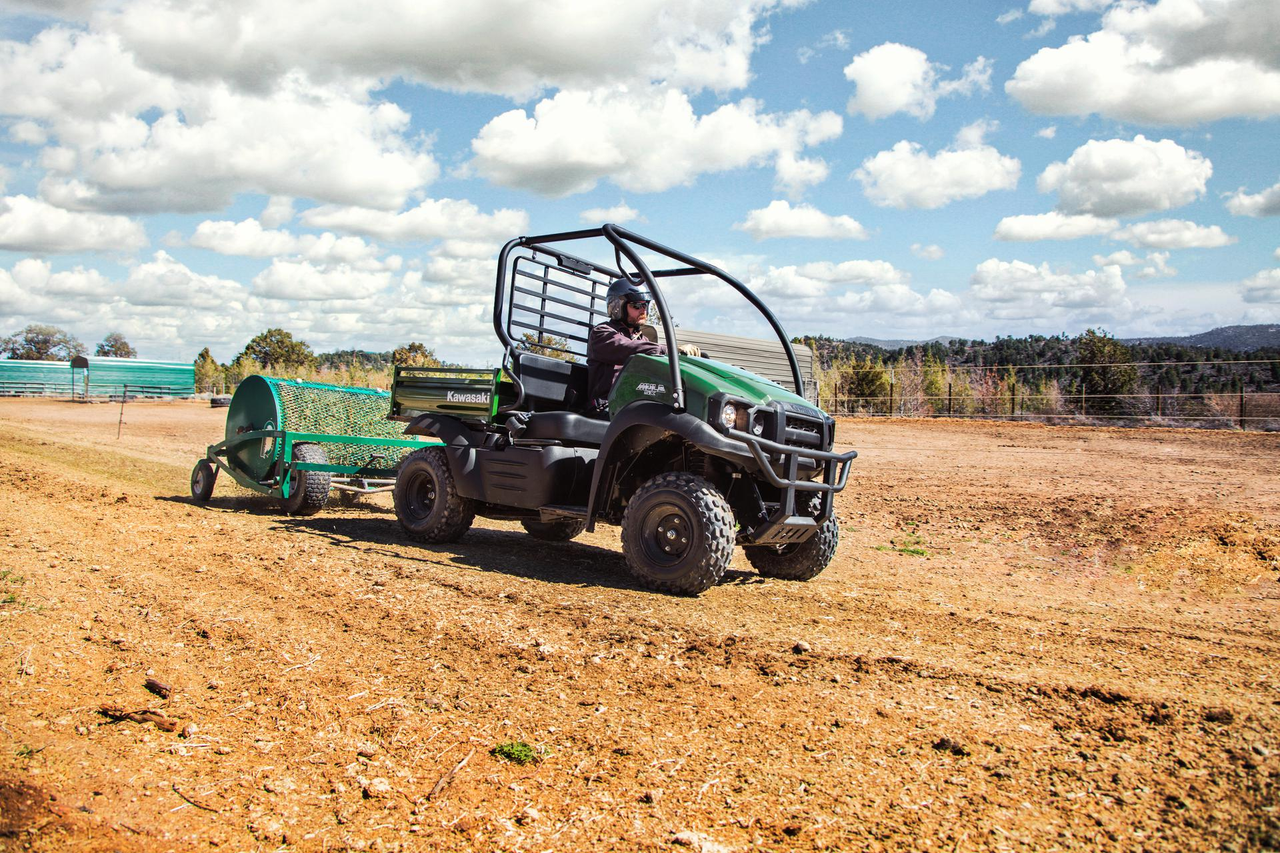

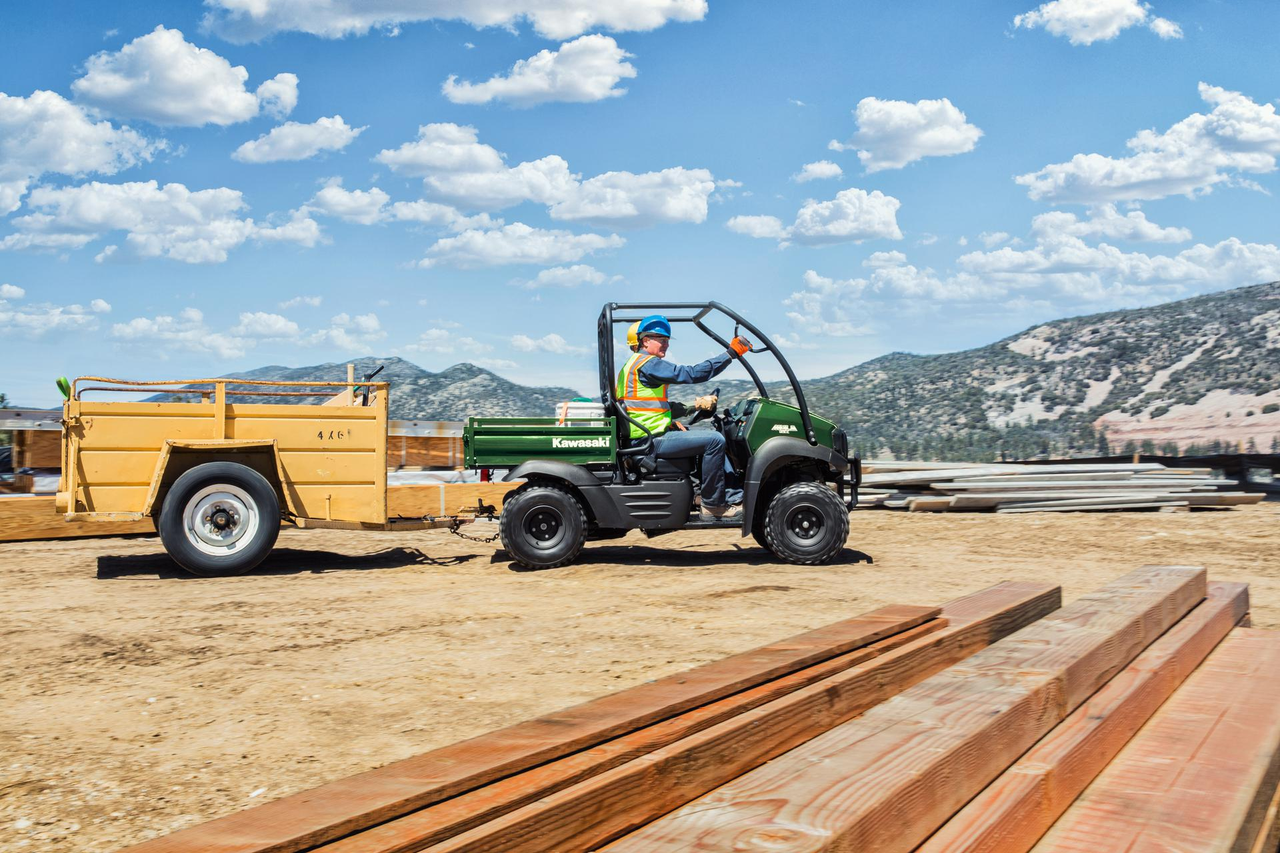

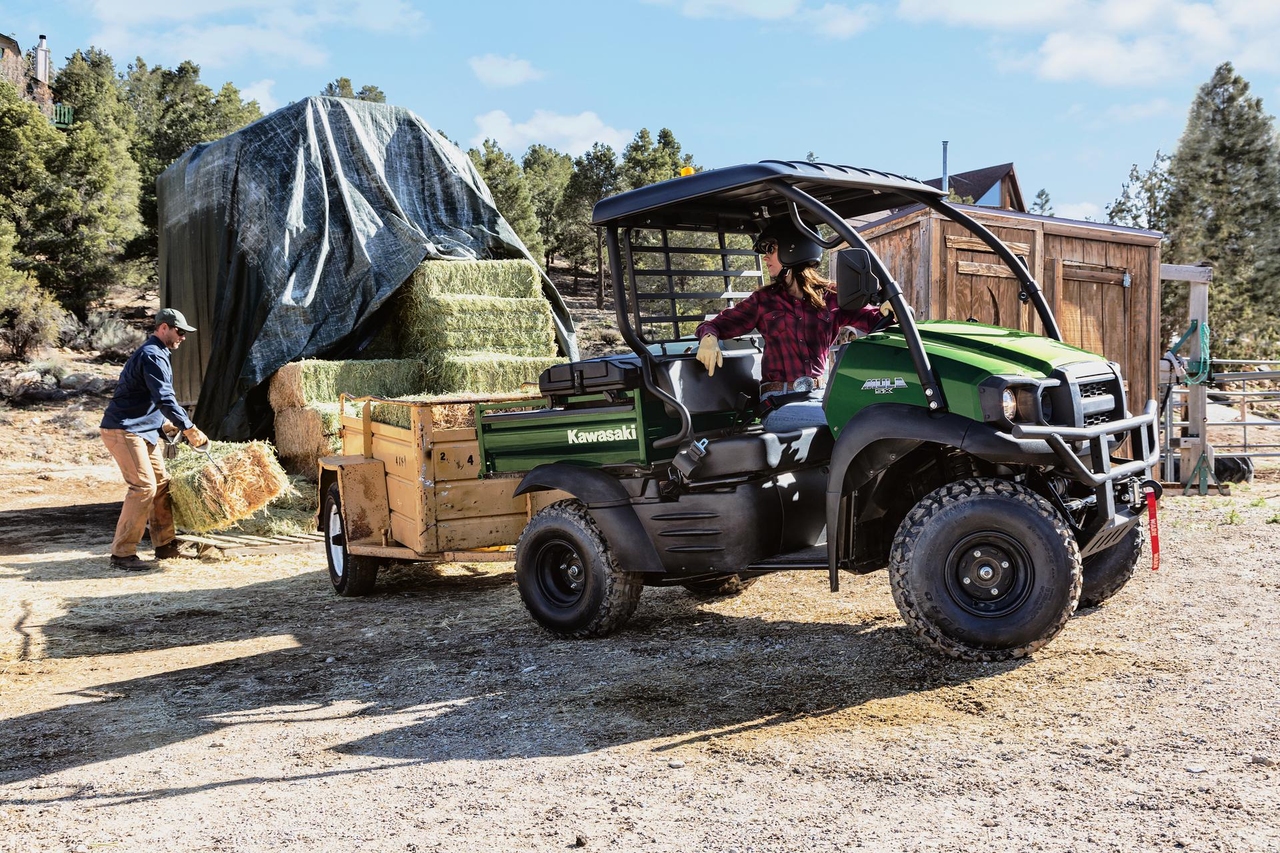

Handle almost any task with the MULE SX side by side’s generous 500 kg towing capacity* and 181 kg cargo bed capacity.

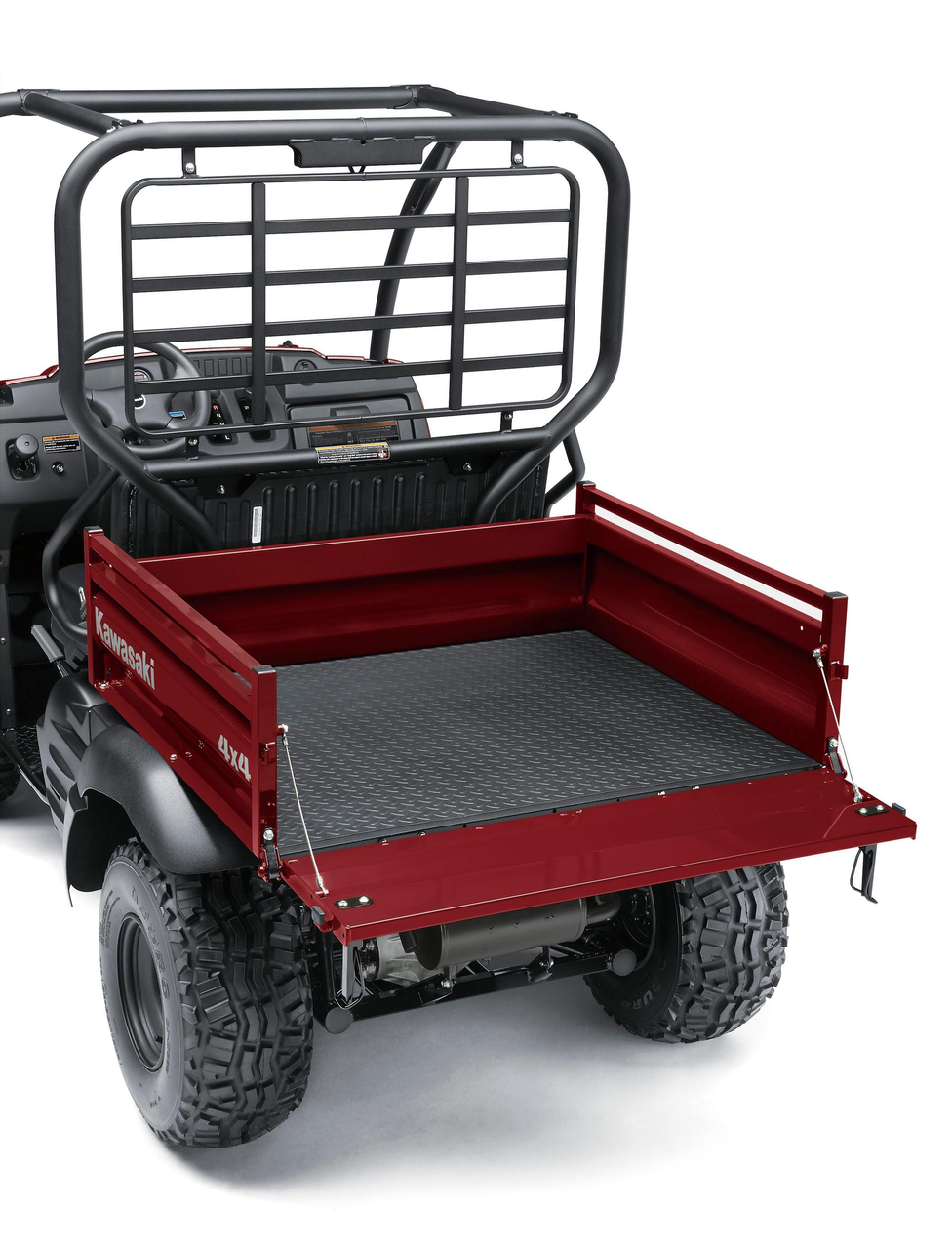

Steel cargo bed with textured floor is durable and scratch resistant. Built to last, all MULE SX side x side vehicles are backed by the industry-leading Kawasaki STRONG 3-Year Limited Warranty.
| Engine type | Air-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 8.3:1 |
| Valve system | OHV |
| Bore x stroke | 82.0 x 76.0 mm |
| Displacement | 401 cm³ |
| Fuel system | Carburettor |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Magneto & transistor |
| Maximum power | 9.2 kW {12.5 PS} / 3,800 rpm |
|---|---|
| Maximum torque | 27.9 N•m {2.8 kgf•m} / 2,200 rpm |
| Transmission | CVT, 1-speed & reverse, automatic |
| Primary drive | Belt drive torque converter (CVT) |
| Final drive | Shaft 2WD |
| Frame type | Ladder type, tubular steel |
|---|---|
| Trail | 40 mm |
| Wheel travel front | 78 mm |
| Wheel travel rear | 79 mm |
| Tyre, front | 22 x 9-10 |
| Tyre, rear | 22 x 11-10 |
| L x W x H | 2,710 x 1,335 x 1,780 mm |
| Wheel base | 1,780 mm |
| Ground clearance | 155 mm |
| Fuel capacity | 16.0 litres |
| Seat height | 765 mm |
| Curb mass | 439 kg |
| Parking brake | Mechanical internal expansion type on rear wheels |
|---|---|
| Front brake type | Dual hydraulic drums |
| Rear brake type | Dual hydraulic drums |
| Front suspension type | MacPherson struts |
| Rear suspension type | Uni-Trak swingarm |
