Reliable Power
401 cc air-cooled, four-stroke single packs plenty of power while the Continuously Variable Transmission (CVT) contributes to smooth power delivery.
Get More Done
Handle almost any task with the MULE SX side by side’s generous 500 kg towing capacity* and 181 kg cargo bed capacity.
*Requires optional hitch
STRONG & Dependable
Steel cargo bed with textured floor is durable and scratch resistant. Built to last, all MULE SX side x side vehicles are backed by the industry-leading Kawasaki STRONG 3-Year Limited Warranty.

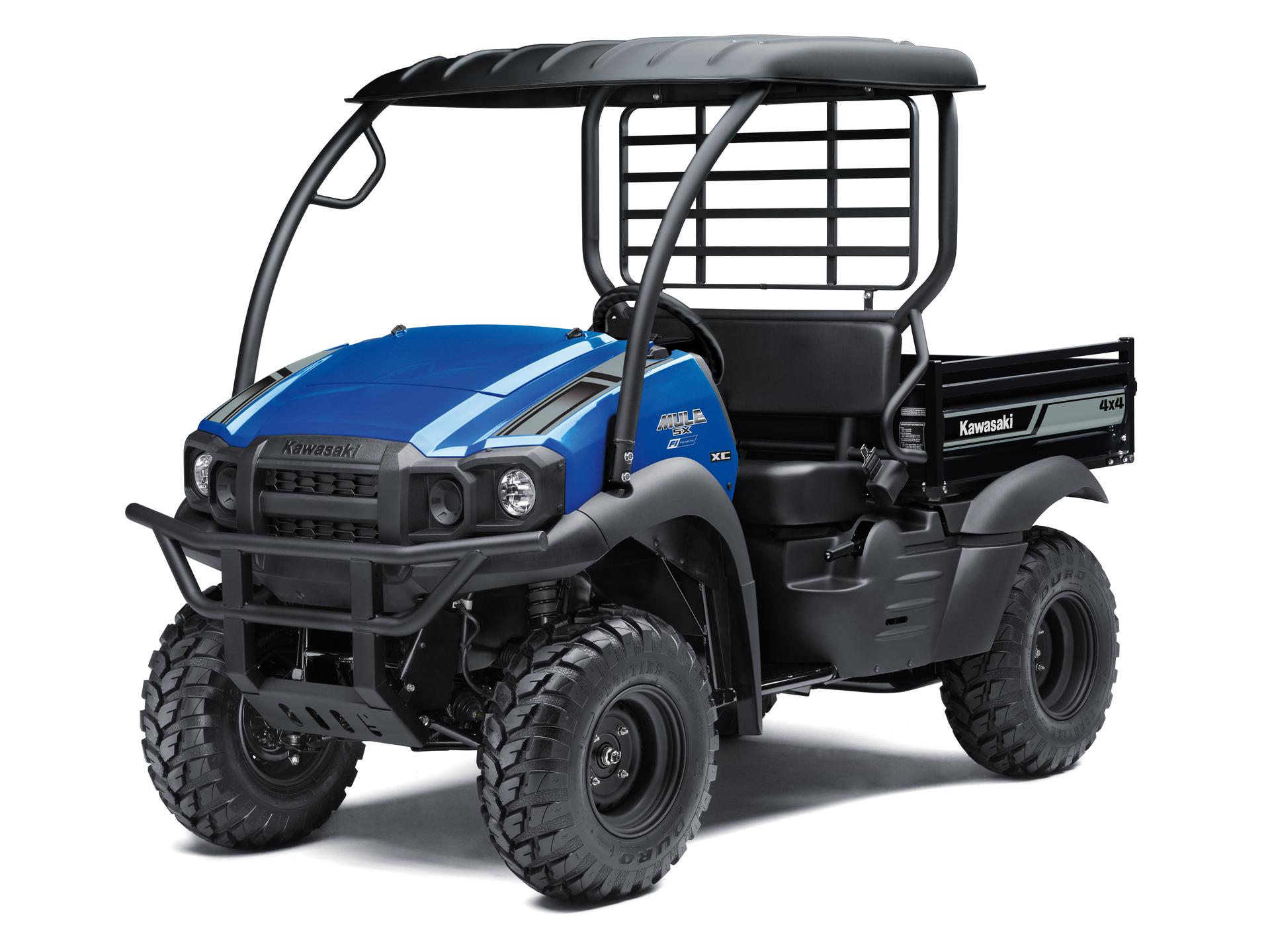

Colour shown not available in New Zealand
Engine
| Engine Type | Air-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 8.6:1 |
| Valve system | OHV, 2 valves |
| Bore x stroke | 82.0 x 76.0 mm |
| Displacement | 401 cm³ |
| Fuel System | Fuel injection |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition | Battery & Coil (transistorised ignition) |
Performance & Transmission
| Maximum power | 9.9 kW {13 PS} / 4,000 rpm |
|---|---|
| Maximum torque | 29.0 N•m {3.0 kgf•m} / 2,400 rpm |
| Transmission | CVT, 2-speed & reverse, automatic |
| Primary reduction ratio | 3.653 ~ 0.794 |
| Primary drive | Belt drive torque converter (CVT) |
| Final drive | Shaft 2WD/4WD |
| Final reduction ratio | 4.000 (64/16) |
Frame & Dimensions
| Frame type | Ladder type, tubular steel |
|---|---|
| Rake | 9.0 ° |
| Trail | 50 mm |
| Wheel travel front | 78 mm |
| Wheel travel rear | 79 mm |
| Tyre, front | 26 x 9.00-12 |
| Tyre, rear | 26 x 9.00-12 |
| L x W x H | 2,710 x 1,335 x 1,905 mm |
| Steering angle L/R | 41° / 35° |
| Wheel base | 1,780 mm |
| Ground clearance | 190 mm |
| Fuel capacity | 16.0 litres |
| Seat height | 840 mm |
| Curb mass | 502 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 484 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Brakes & Suspension
| Parking brake | Mechanical internal expansion type on rear wheels |
|---|---|
| Front brake type | Dual hydraulic drums |
| Rear brake type | Dual hydraulic drums |
| Front suspension type | MacPherson struts |
| Rear suspension type | Unit swingarm |
