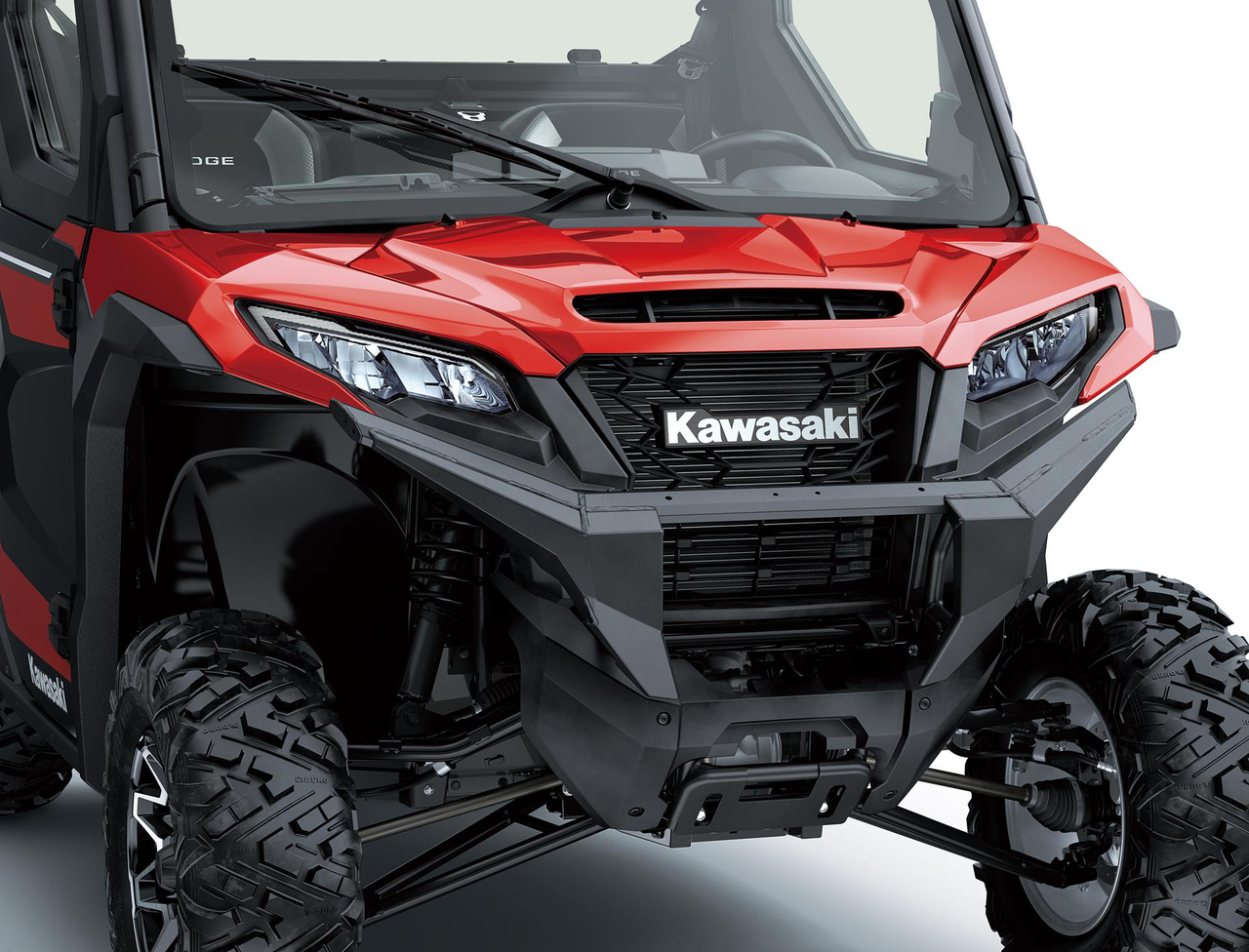

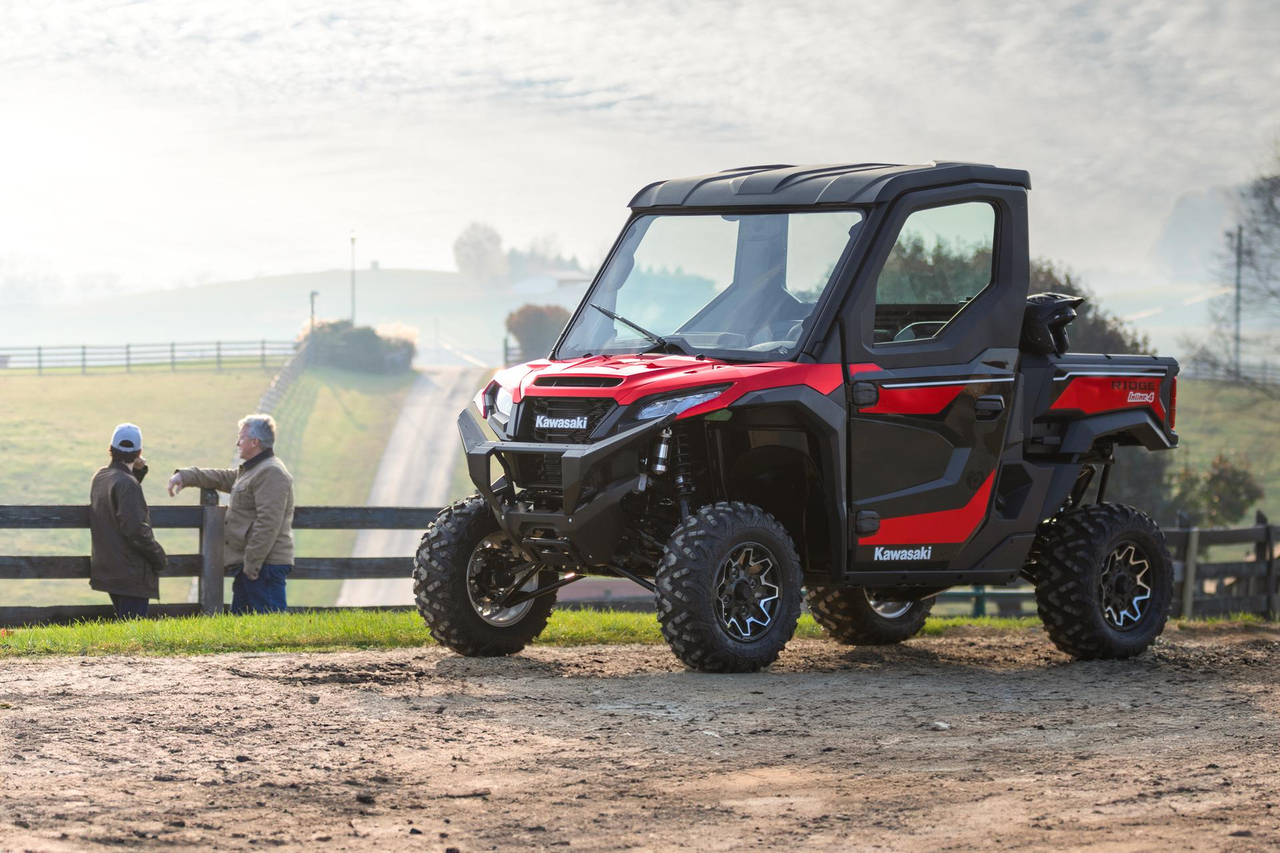

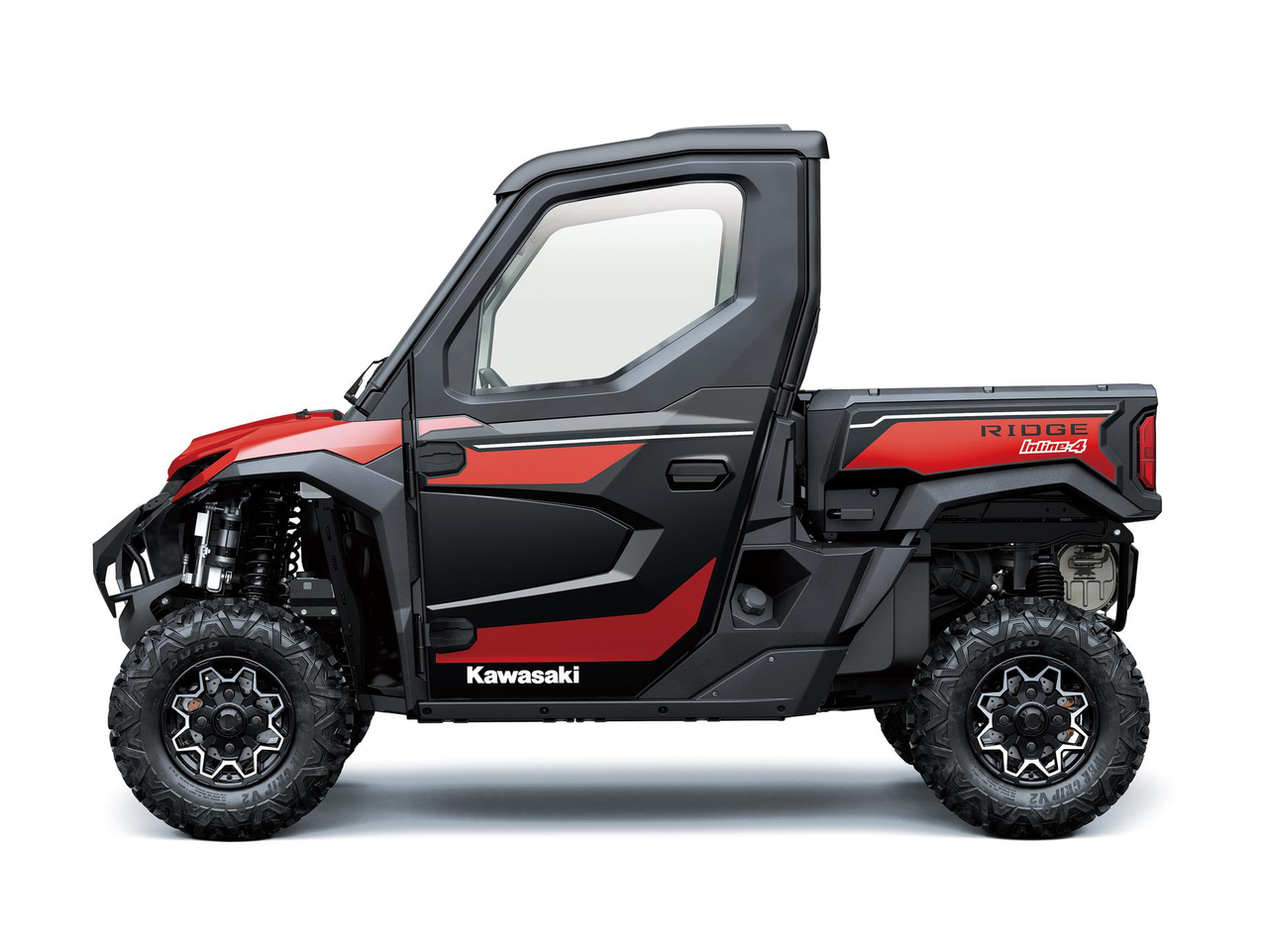

Complementing its rugged, sporty styling, the RIDGE’s premium exterior includes painted fenders and all-LED lighting. The front headlights’ line-type LED position lights create a fierce expression, backed up by a large aluminium Kawasaki emblem on the front grille and a solid-looking steel front bumper.
Large 7” high-grade full-colour TFT LCD screen features multiple selectable display modes to offer information at a glance in the format of the driver’s choice.

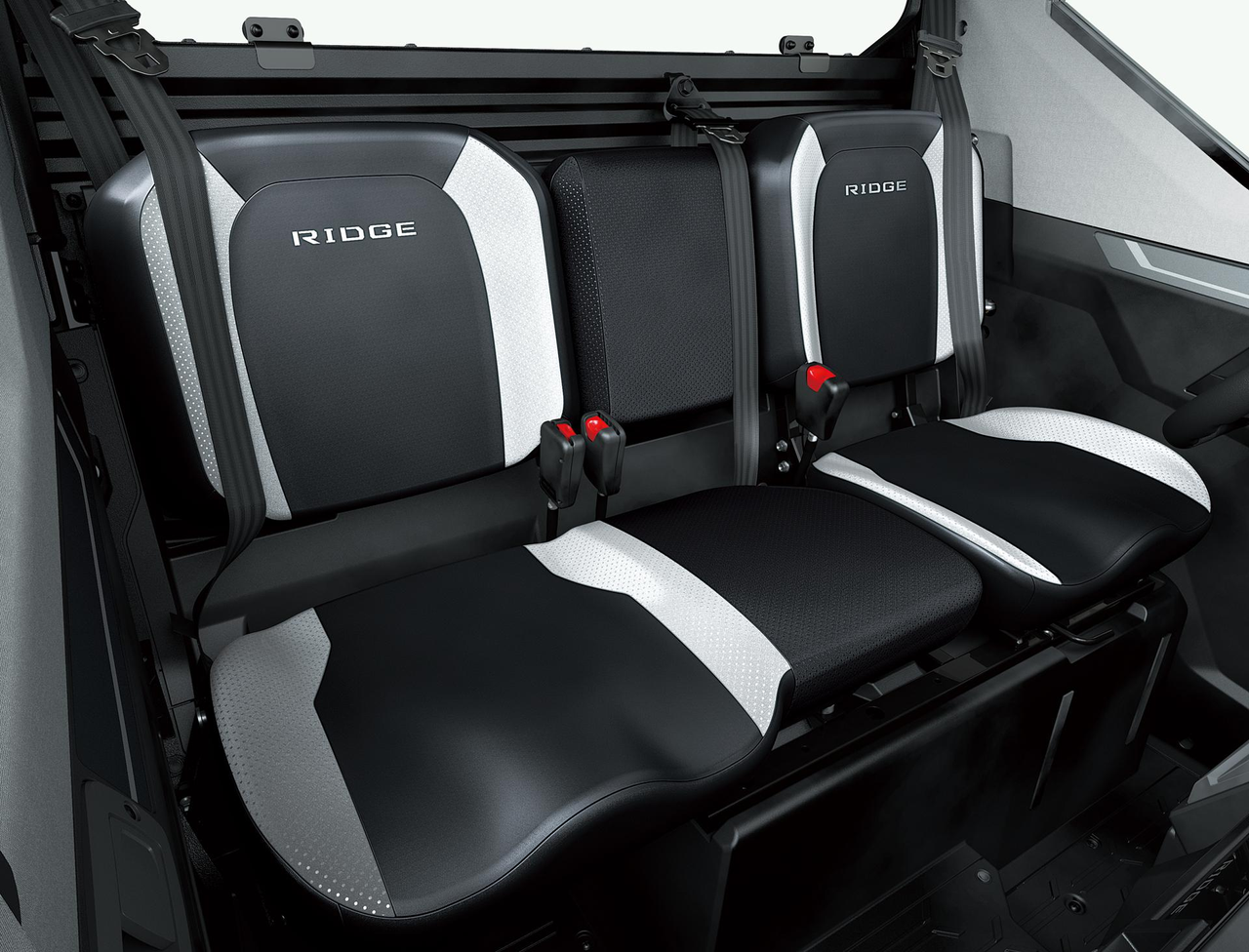

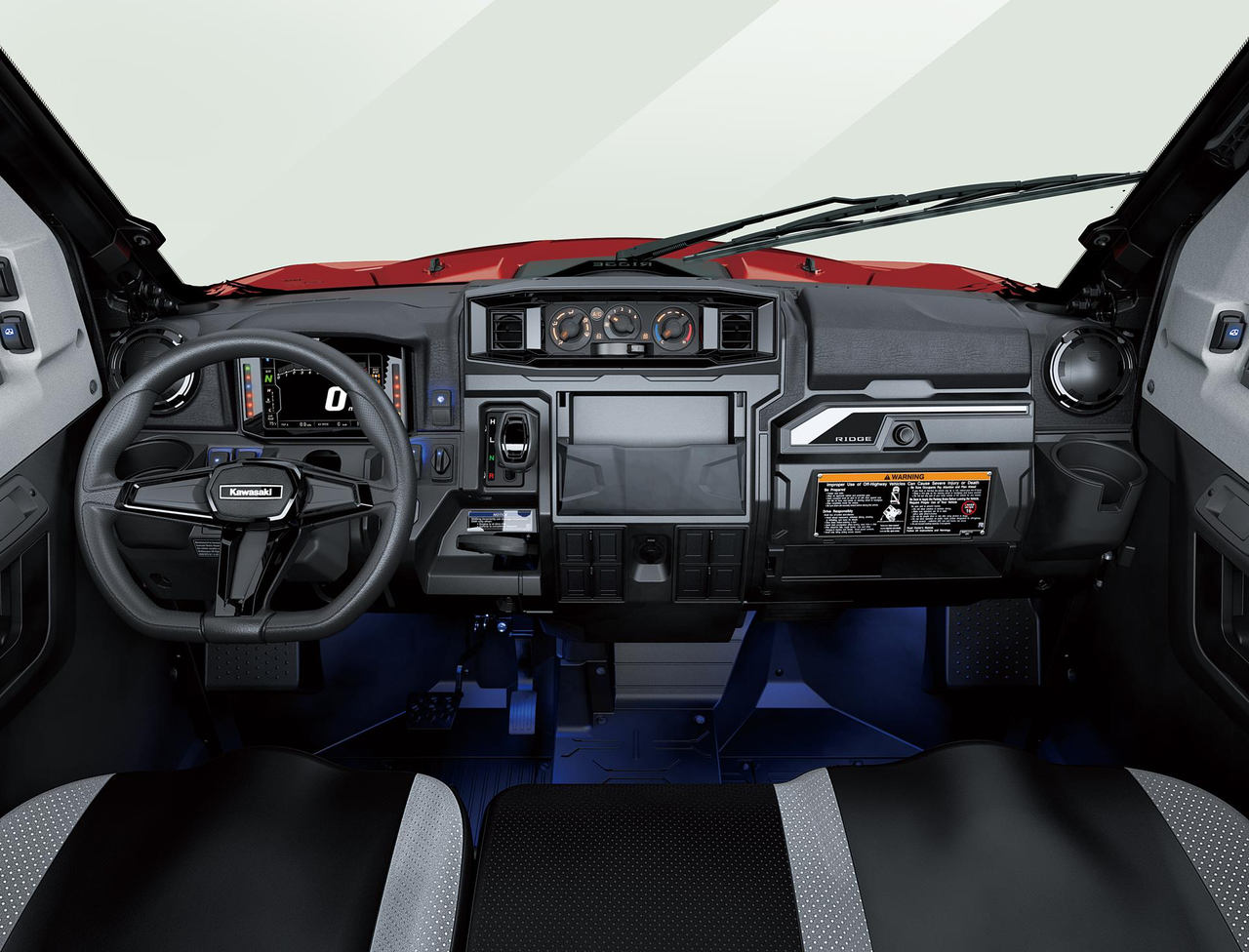

The RIDGE’s roomy cabin offers the shoulder and legroom for three people to comfortably sit side-byside. The bench seat features contoured seating for the driver and right-side passenger. Ample legroom for all is complemented by a lever-adjustable driver’s seat and tilt steering, allowing the driver to fine-tune their position for control and comfort. EPS is standard. Sliding behind the wheel feels like getting into a car—from the natural sitting position to the position of the steering wheel and controls.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
| Engine type | Liquid-cooled, 4-stroke, parallel twin |
|---|---|
| Compression ratio | 10.6:1 |
| Valve system | DOHC, 4 valves |
| Bore x stroke | 73.4 x 59.0 mm |
| Displacement | 999 cm³ |
| Fuel system | Fuel injection: 52 mm x 1 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Digital |
| Maximum power | 68.6 kW {93 PS} / 8,500 rpm |
|---|---|
| Maximum torque | 89.0 N•m {9.1 kgf•m} / 5,500 rpm |
| Transmission | CVT, 2-speed & reverse, automatic |
| Primary reduction ratio | 3.104 ~ 0.742 |
| Final drive | Shaft 2WD/4WD, dual-mode differential |
| Final reduction ratio | 3.589 (25/24 x 20/19 x 36/11) |
| Frame type | Ladder type, tubular steel |
|---|---|
| Trail | 20 mm |
| Wheel travel front | 323 mm |
| Wheel travel rear | 322 mm |
| L x W x H | 3,160 x 1,625 x 2,065 mm |
| Wheel base | 2,080 mm |
| Ground clearance | 320 mm |
| Fuel capacity | 49.0 litres |
| Seat height | 930 mm |
| Curb mass | 927 kg |
| Parking brake | Dual discs (mechanical) |
|---|---|
| Front brake type | Dual discs |
| Front brake diameter | Ø 212 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Dual discs |
| Rear brake diameter | Ø 212 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Double wishbone |
