High-performance FOX LSC Piggyback Shocks help improve traction and handling, while dual front disc brakes and a tight turning radius contribute to easy manoeuvrability.
783 cc, fuel-injected, V-twin engine produces the power needed to take on challenging terrain. With strong low- and mid-range torque, it provides the muscle to conquer tough trails.

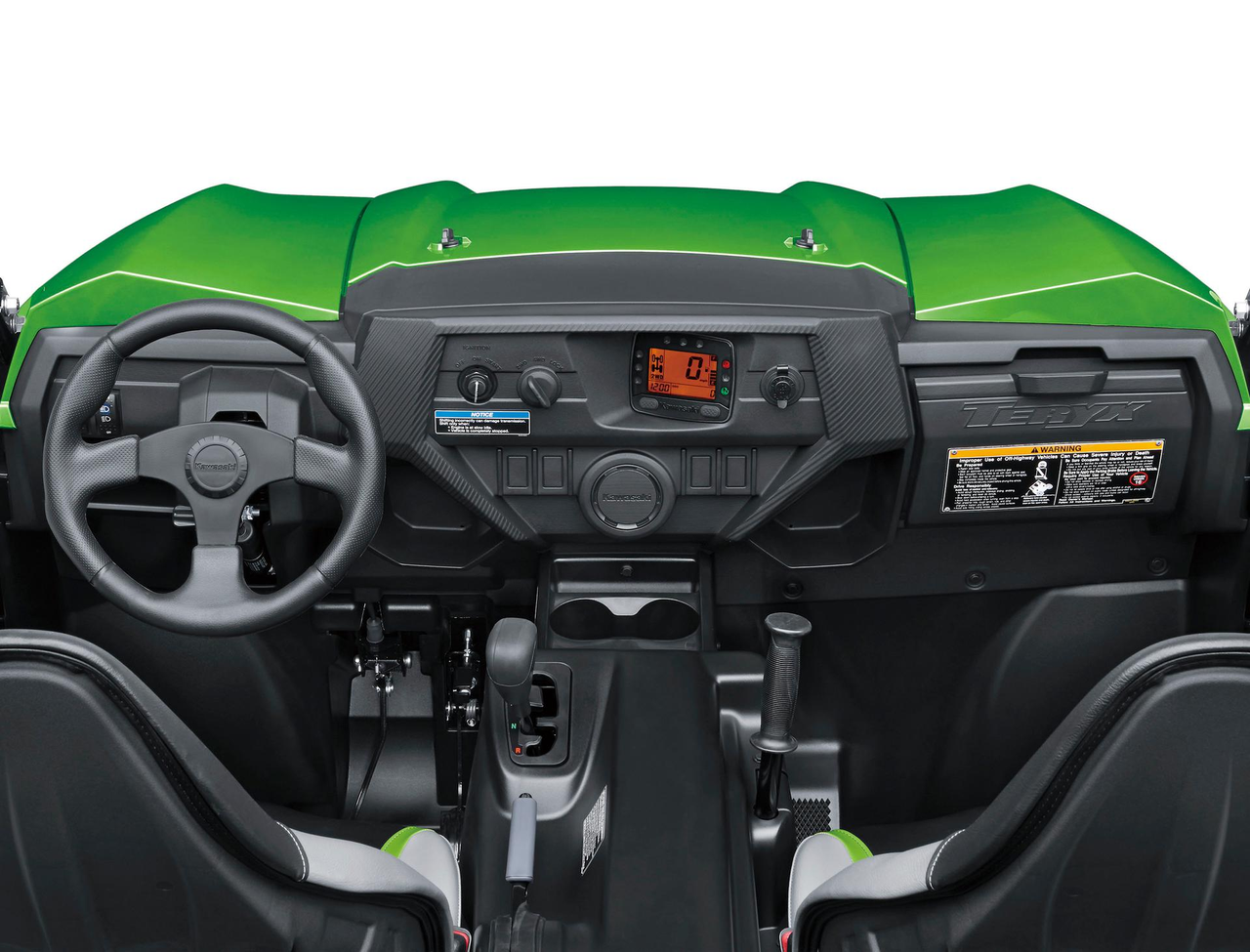

Teryx side x sides come equipped with a host of modern convenience features to help make your weekend excursions in the woods, mountains, or even in your own backyard, more enjoyable.
With a tilting cargo bed that holds up to 272 kg, a two-inch hitch receiver and a massive towing capacity of up to 590 kg, Teryx side x sides are the perfect vehicle whether you’re transporting cargo or taking the boat out for the day.
| Engine type | Liquid-cooled, 4-stroke, V-twin |
|---|---|
| Compression ratio | 10.7:1 |
| Valve system | SOHC, 4 valves |
| Bore x stroke | 85.0 x 69.0 mm |
| Displacement | 783 cm³ |
| Fuel system | Fuel injection: 36 mm x 2 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Battery & Coil (transistorised ignition) |
| Maximum power | 43.0 kW {58 PS} / 6,750 rpm |
|---|---|
| Maximum torque | 64.0 N•m {6.5 kgf•m} / 5,500 rpm |
| Transmission | CVT, 2-speed & reverse, automatic |
| Primary reduction ratio | 2.788 ~ 0.725 |
| Primary drive | Belt drive torque converter (CVT) |
| Final drive | Shaft 2WD/4WD |
| Final reduction ratio | 4.375 (35/8) |
| Trail | 38 mm |
|---|---|
| Wheel travel front | 272 mm |
| Wheel travel rear | 254 mm |
| Tyre, front | 27 x 9.00R14 6PR |
| Tyre, rear | 27 x 11.00R14 6PR |
| L x W x H | 3,000 x 1,590 x 1,995 mm |
| Steering angle L/R | 37° / 32° |
| Wheel base | 2,240 mm |
| Ground clearance | 285 mm |
| Fuel capacity | 30.0 litres |
| Seat height | 870 mm |
| Curb mass | 724 kg |
| Parking brake | Enclosed wet multi-plate |
|---|---|
| Front brake type | Dual discs |
| Front brake diameter | Ø 200 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Enclosed wet multi-plate |
| Front suspension type | Double wishbone |
| Rear suspension type | Double wishbone |
